Hanss Sealed Bearings Hubs
KSh9,500.00Specifications
- Bearing Type: Sealed cartridge bearings
- Spoke Holes: 28, 32, or 36 holes
- Hub Width: Front: 100mm/110mm (Boost); Rear: 135mm/142mm/148mm (Boost)
- Axle Compatibility: Quick-release (9mm/10mm), Thru-axle (12mm/15mm)
- Freehub Compatibility: 8-11 speed cassette
- Weight: Front: ~150-200g; Rear: ~250-300g
- Brake Compatibility: 6-bolt disc brake
- Material: Alloy hub shell, high-carbon chromium steel bearings
- Color Options: Black

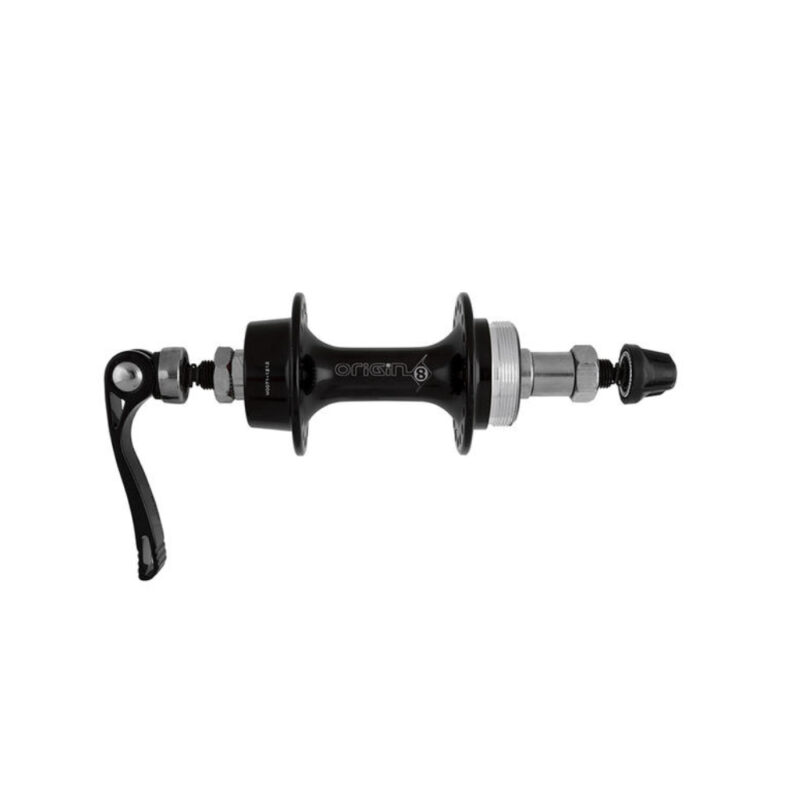

Rear Freewheel Hub
KSh500.00Specifications
- Material: Steel (ratchet mechanism), aluminum (hub body), or stainless steel (axle).
- Thread Size: Standard ISO/English 1.37" x 24 TPI.
- Sprocket Range: 13-tooth to 34-tooth, supporting 1 to 8-speed freewheels.
- Bearing Type: Sealed cartridge or adjustable cup-and-cone bearings.
- Axle Width (OLD): 110mm, 120mm, 126mm, or 130mm
- Spoke Holes: Available in 28, 32, or 36 holes
- Brake Compatibility: Designed for rim brakes; select models support disc brakes.
- Color Options: Black
Quando Hubs Pair
KSh5,000.00Specifications
- Hub Type: Front and Rear Hubs
- Hole Count: Available in 32 or 36 holes for spoke lacing
- Axle Diameter: 10mm for rear; 9mm or 10mm for front
- Over-Locknut Dimension (O.L.D.): Front: 100mm; Rear: 120mm or 135mm
- Material: Aluminum alloy hub shell and axle; Cr-Mo steel axle option available
- Bearing Type: Sealed cartridge bearings
- Color Options: Black
- Brake Compatibility: 6-bolt disc brake mount
- Cassette Compatibility: 8/9/10-speed cassettes or 7-speed freewheels
- Threading: 3/8" x 26TPI for freewheel models
Novatec Micro Spline Hubs
KSh8,500.00Specifications
- Models: D791SB (front), D462SB, D902SB (rear)
- Freehub Type: Micro Spline, steel construction, 4-pawls
- Axle Options: Front: 9x100mm ,Rear: 10x135mm
- Bearing Count: Front: 2 sealed bearings; Rear: 4 sealed bearings
- Spoke Holes: 32H
- Brake Compatibility: 6-bolt disc or Center Lock
- Cassette Compatibility: Shimano 12-speed Micro Spline
- Color: Black
Novatec Cassette Hub Pair
KSh8,500.00Specifications
- Model: Novatec D791SB (Front) / D462SB (Rear)
- Weight: Front: ~157g; Rear: ~433g (SRAM XD configuration)
- Spoke Holes: 24, 28, or 32 (front and rear)
- Axle Options: Front: 9x100mm QR, 12x100mm TA; Rear: 10x135mm QR, 12x135mm, 12x142mm, 12x148mm
- Brake Compatibility: 6-bolt or Center-Lock disc brake options
- Cassette Compatibility: Shimano HG (8-11s), SRAM XD/XDR (11-12s), Campagnolo
- Material: Aluminum body, chromoly axle, steel cassette body
- Bearings: 2 sealed bearings (front), 4 sealed bearings (rear)
- Color: Black
- Pawl System: 3 or 4 pawls with 18/36-tooth ratchet ring
Novatec Boost Axle Hubs
KSh8,500.00Specifications
- Front Hub: Axle: 15x110mm Boost, Spoke Holes: 24, 28, or 32: Bearings: 2 sealed NBK bearings: Brake Type: 6-Bolt or Center Lock disc
- Rear Hub: Axle: 12x148mm Boost, Spoke Holes: 32, Bearings: 4 or 5 sealed NBK bearings, Brake Type: 6-Bolt or Center Lock disc, Freehub: Shimano HG, Micro Spline, or SRAM XD
- Material: Aluminum with chromoly axle options
- Color: Black
Steel Hubs
KSh500.00Specifications
- Material: High-quality steel
- Color: Chrome-plated (CP)
- Hole Count: 36 holes
- Bearing Type: 17 x 40mm double-seal bearings
- Flange Dimensions: Center Flange: 71mm,Outer Diameter: 66mm,Flange Width: 3mm
- Center Bearing Spacing: 100mm
- Rear Hub Compatibility: Multispeed cassette (7/8/9/10-speed)
- Disc Brake Compatibility: Not compatible with disc brakes
- Weight: Approximately 495g
- Axle Type: Quick-release (QR) for front and rear (135mm rear axle)
- Spoke Interface: J-Bend
Quando Aluminium Hubs
KSh5,000.00Specifications
- Material: High-quality aluminium alloy hub shell and axle.
- Spoke Holes: Available in 32H or 36H configurations, accommodating various lacing patterns.
- Axle Types: Front hubs typically 100mm, rear hubs 130mm, 135mm, or 170mm
- Freehub Compatibility: 8/9/10-speed cassette (rear hubs)
- Bearing Type: Sealed cartridge bearings for smooth performance and durability.
- Weight: Approximately 230g
- Disc Mount: 6-bolt disc brake compatible on select models.
- Axle Dimensions: M10 x 135mm x 145mm
- PCD Flange Diameter: 57mm
